MeshBot

Automated Robotic Assembly and Fabrication

MeshBot

A Collaborative Automated Robotic Fabrication Platform.

Integrating industrial robotic arms, computer vision, and Computer-Aided Manufacturing (CAM).

Internship project @Autodesk Pier9, Summer 2016

MeshBot is a fully automated robotic fabrication for mesh structures. It consists of two robotic arm as the holder and welder that fabricate a structure made of pre-fabricated triangular metal parts.

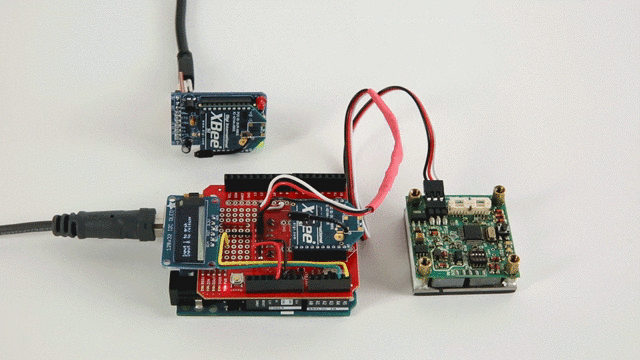

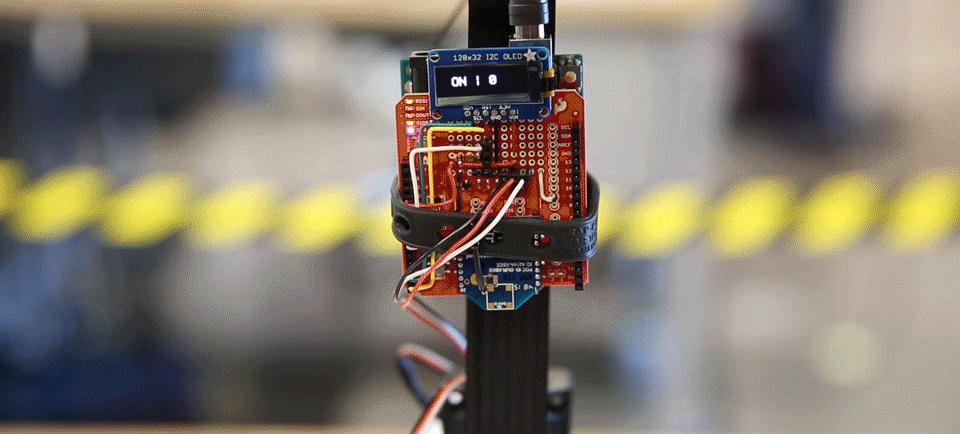

The robotic end effector assembly has two main units: 1. Microsoft Kinect for computer vision, and 2. A wirelessly controlled electropermanent magnetic gripper.

image32_ copy 2.gif

The computer vision algorithm can detect elements and find the pickup point.


Acknowledgment:

This project was developed as an internship project at Autodesk Pier9 facilities during the summer of 2016.

I contributed to this project on form design, robotic end-effectors design, electronic systems development for the robotic end-effectors, visualization, and documentation.
